I. Overview

Deployment Strategy

II. Getting Started

Top 5 most-used deployment strategies

  • Big Bang Deployment
  • Rolling Deployment
  • Blue-Green Deployment
  • Canary Deployment
  • Feature Toggle

1. Big Bang Deployment

targets

Defintion: The Big Bang deployment strategy is a method of deploying new application or system version where the entire update is rolled out in a single step to all user at once. This strategy involves switching from the old system to the new one simultaneously, effectively making the update live everywhere at the same time.

Process:

  1. Pre-Deployment

    • Prepare the new version in a staging/test environment
    • Ensure all component are tested and ready for release

  2. Deployment

    • The old version of the application/system is stopped/disabled
    • The new version is deployed and made live across all environments

  3. Post-Deployment

    • Monitor system

Pros and Cons:

  • Pros: Simplicity, Speed, Consistency
  • Cons: High risk, Downtime, Limited Roll Back Option, No Gradual Feedback

When to use ?

  • Downtime of the application/system is less critical
  • New version is fully tested, and there is confidence in its stability
  • Small system with fewer dependency
  • Or maybe the cost and complexity of a phased rollout is prohibitive

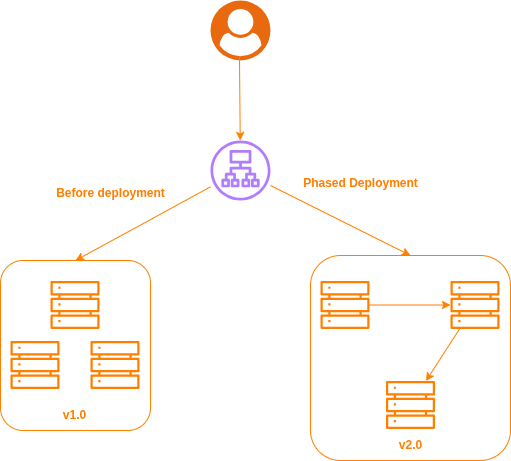

2. Rolling Deployment

targets

Definition: Rolling deployment is a deployment strategy used in software development to update an application gradually without downtime. In this approach, new instances of application are incrementally deployed while old ones are taken offline. This ensure continuous availability of service to end user.

Process:

  1. Pre-Deployment

    • Build and test the new version in a staging environment.
    • Configure rollout strategy and health checks.

  2. Deployment

    • Gradually replace old instances with the new version in small batches.
    • Validate each batch using health checks and monitoring tools.

  3. Post-Deployment

    • Ensure all instances are running the new version.
    • Monitor system performance.

Pros and Cons:

  • Pros: No Downtime, Minimized Risk, Continuous Delivery
  • Cons: Complexity, Version Mismatch, Longer Deployment Time

When to use ?

  • The system cannot afford downtime (e.g., e-commerce, banking, or SaaS applications)
  • You want to test the new version incrementally and reduce the risk of system-wide failure
  • The new release includes minor updates or non-breaking changes to the application
  • The system does not have sufficient resources to deploy two full environments
  • The old and new versions can coexist without causing conflicts (e.g., API or data schema compatibility)
  • Works well with containerized and microservices-based applications in environments like Kubernetes, ECS, or similar orchestration platforms

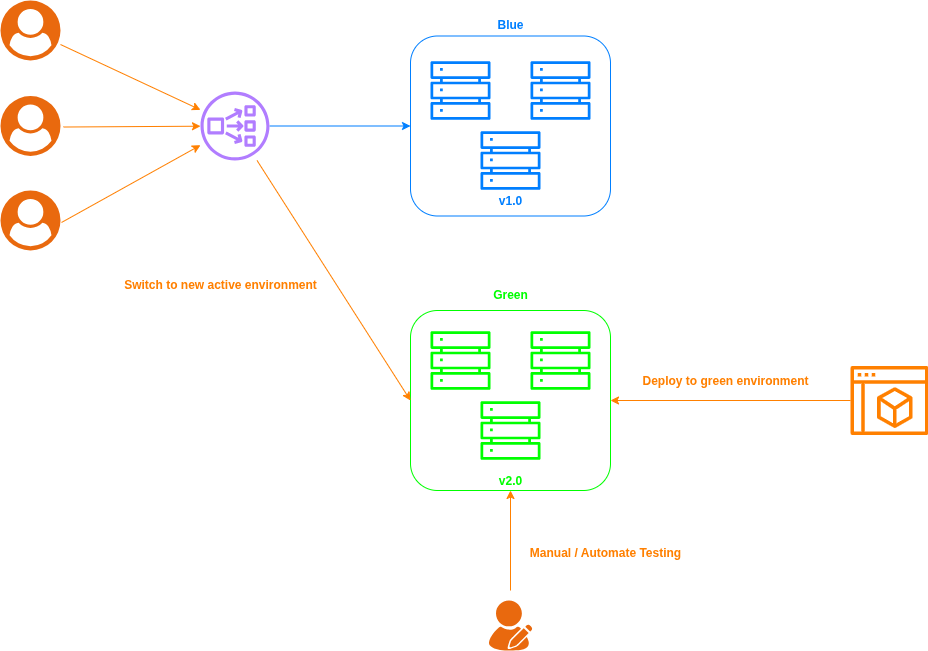

3. Blue Green Deployment

targets

Definition: Blue-green deployment is a deployment strategy that reduces downtime and risk by running two identical production environments, referred to as “Blue” and “Green”. At any given time, only one of the environments is live and serving production traffic. For example, if Blue is live, the next version of the application is deployed to the Green environment. Once the new version is ready, traffic is switched from Blue to Green, making Green the new live environment.

Process:

  1. Pre-Deployment

    • The current version of the application is running in the live environment (e.g., Blue)
    • A complete, identical environment (Green) is created
    • The new version of the application is fully deployed to the Green environment

  2. Deployment

    • The Green environment is thoroughly tested to ensure it is working correctly (e.g., integration tests, smoke tests)
    • The router or load balancer is reconfigured to switch all incoming traffic from the Blue environment to the Green environment. This cutover is typically instantaneous

  3. Post-Deployment

    • The Blue environment is kept on standby for immediate rollback if issues are discovered in the Green environment.
    • The Blue environment can be decommissioned or used as the staging area for the next release.

Pros and Cons:

  • Pros: Instant Rollback, No Version Mismatch, Simplified Testing.
  • Cons: Higher Cost, Database Compatibility Challenges, Abrupt Traffic Switch.

When to use ?

  • The system requires zero downtime and the ability for instant, simple rollbacks.
  • The infrastructure costs of maintaining two identical production environments are acceptable.
  • You want to avoid the complexity of having different versions of the application code running simultaneously.
  • You need to conduct extensive testing (including load tests) on the new version in a production-identical environment before it receives any live traffic.
  • Changes between versions are self-contained and do not have complex, breaking database schema dependencies.
  • Works well with immutable infrastructure where environments can be easily created and destroyed.

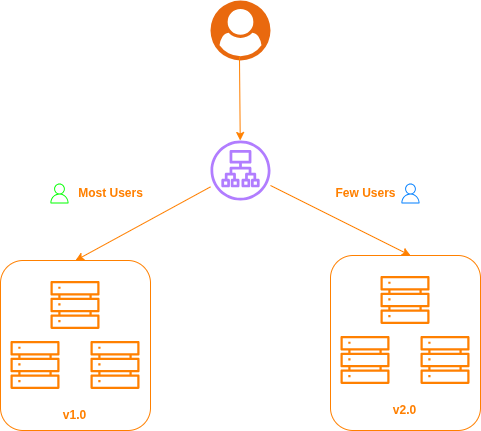

4. Canary Deployment

targets

Fun Fact:

  • The name “canary deployment” comes from the old mining practice of using a “canary in a coal mine”
  • Miners would bring a caged canary down into the mines with them. Canaries are much more sensitive to toxic gases (like carbon monoxide) than humans. If the canary showed signs of distress or died, it was an early warning for the miners to evacuate immediately before they were affected

targets

Definition: Canary deployment is a strategy where a new version of an application is gradually rolled out to a small subset of users or servers before making it available to the entire user base. This small group acts as a “canary in a coal mine,” allowing teams to test the new version in a real production environment with minimal impact. If the new version performs as expected, the rollout is progressively expanded.

Process:

  1. Pre-Deployment

    • Build and test the new version in a staging environment
    • Define the initial user subset (the “canary” group) and key performance metrics for success (e.g., error rate, latency, resource utilization)
    • Prepare the production environment to run both the old and new versions side-by-side

  2. Deployment

    • Route a small percentage of live user traffic (e.g., 5%) to the new version (the canary). The rest of the traffic continues to go to the stable, old version
    • Closely monitor the canary group against the predefined metrics. Compare its performance to the stable version
    • If the canary is healthy, gradually increase the percentage of traffic routed to the new version. If issues arise, immediately roll back by directing all traffic back to the old version

  3. Post-Deployment

    • Once 100% of the traffic is successfully routed to the new version, the old version instances can be decommissioned
    • Continue monitoring the system to ensure long-term stability

Pros and Cons:

  • Pros: Safest Deployment (minimal blast radius), Real-World Testing, Zero Downtime
  • Cons: Highest Complexity, Requires Advanced Monitoring, Slower Rollout

When to use?

  • The release contains high-risk or experimental features that need validation with real user traffic
  • You want to gather performance data and user feedback before committing to a full rollout
  • The system has robust monitoring, feature flagging, and traffic-shaping capabilities
  • You want to perform A/B testing by directing different user segments to different versions
  • Suitable for large-scale applications where even a small percentage of traffic provides a statistically significant sample for testing

5. Feature Toggle

targets

Definition: A feature toggle is a software development technique that allows teams to turn specific functionality on or off during runtime without deploying new code. It works by wrapping new features in a conditional block (a toggle or flag) within the code, which can be controlled remotely. This decouples feature releases from code deployments.

Process:

  1. Pre-Deployment

    • A new feature is developed and encapsulated within a conditional if/else block controlled by a feature flag
    • By default, the flag is set to “off,” meaning the new code path is not executed
    • The code, including the new inactive feature, is merged and deployed to the production environment

  2. Deployment

    • The feature is enabled by turning the flag “on” via a configuration dashboard or an API call. This does not require a new code deployment
    • The release can be targeted: first to internal teams, then to a small percentage of users (e.g., a beta group), and finally to everyone
    • The performance and user reception of the new feature are monitored in real-time.

  3. Post-Deployment

    • If the feature is stable and successful, the flag is permanently turned on for all users. Over time, the toggle and the old code path are removed from the codebase to reduce technical debt
    • If the feature causes issues, the flag is instantly turned “off,” immediately disabling the functionality for all users without needing a code rollback or a new deployment

Pros and Cons:

  • Pros: Decouple Deployment from Release, Instant Kill Switch, Targeted Rollouts, Enables Trunk-Based Development
  • Cons: Increased Code Complexity, Technical Debt (flags must be managed and removed), Requires a Management System

When to use?

  • You want to deploy new code to production frequently but control the timing of when users see new features
  • You need to test features in a live production environment with a specific group of users (e.g., internal staff, beta testers) before a full release
  • You require an emergency “kill switch” to instantly disable a feature if it causes critical problems
  • Your team practices trunk-based development and wants to avoid long-lived, complex feature branches
  • You want to manage access to certain features based on user segments, subscription tiers, or regions
